What is the sub - spindle in CNC turning?

As a supplier specializing in CNC turning, I've encountered numerous inquiries about the sub - spindle in CNC turning. It's a critical component that significantly enhances the capabilities of a CNC turning machine, and understanding its functions and applications is crucial for anyone involved in the manufacturing industry.

1. Understanding the Basics of Sub - Spindle in CNC Turning

In a CNC turning machine, the primary spindle is where the raw material, usually a bar stock, is initially held. The cutting tools then shape the material while the spindle rotates at high - speed. The sub - spindle, on the other hand, is an additional spindle located on the machine. It can grip the workpiece from the primary spindle and hold it in place for further machining operations.

The sub - spindle in a CNC turning machine can rotate independently of the primary spindle. This allows for simultaneous operations on different parts of the workpiece. For example, while the primary spindle is cutting the front end of a part, the sub - spindle can be performing machining operations on the back end. This multi - tasking ability greatly reduces the overall machining time and increases productivity.

2. Advantages of Using a Sub - Spindle in CNC Turning

2.1 Increased Productivity

As mentioned earlier, the main advantage of a sub - spindle is the ability to perform multiple operations simultaneously. In traditional CNC turning processes without a sub - spindle, a workpiece often has to go through multiple setups and machining steps. Each setup requires time for alignment and clamping, which adds to the overall production time. With a sub - spindle, once the primary spindle has completed the front - end machining, the sub - spindle can immediately take over the workpiece and start machining the back end without the need for a new setup. This seamless transfer between the two spindles can significantly reduce cycle times and increase the number of parts produced per hour.

2.2 Improved Precision

The sub - spindle also contributes to better precision in machining. Since the workpiece can be held firmly by the sub - spindle during the secondary machining operations, there is less chance of movement or vibration that could affect the accuracy of the cut. This is especially important for parts that require high - precision dimensions, such as those used in the aerospace or medical industries.

2.3 Cost - Effectiveness

By reducing the production time and improving precision, the use of a sub - spindle can ultimately lead to cost savings. Fewer setups mean less labor and machine time, which reduces the overall manufacturing costs. Additionally, the higher precision achieved can lead to fewer defective parts, which also saves on material and rework costs.

3. Applications of Sub - Spindles in CNC Turning

3.1 Automotive Industry

In the automotive industry, many parts require machining on both ends, such as shafts, pistons, and connectors. The sub - spindle in CNC turning machines can efficiently handle these parts. For example, a piston may need to have the top surface machined to a precise diameter and then have the pin - boss holes drilled and finished. With a sub - spindle, the piston can be transferred from the primary spindle to the sub - spindle without disturbing the initial machining setup, ensuring consistent quality and high productivity.

3.2 Electronics Industry

The electronics industry demands high - precision parts with complex geometries. Components like connectors and terminals often need precise machining on multiple surfaces. The sub - spindle enables the CNC turning machine to machine these parts from both ends, achieving the required accuracy and surface finish. This is essential for ensuring the proper functioning of electronic devices.

3.3 Medical Industry

Medical devices require extremely high precision and quality. Parts such as surgical instruments and implants need to be machined to exacting specifications. The sub - spindle in CNC turning machines can perform multiple operations on these parts with minimal handling, reducing the risk of contamination and improving the overall quality of the final product.

4. Our Capabilities as a CNC Turning Supplier

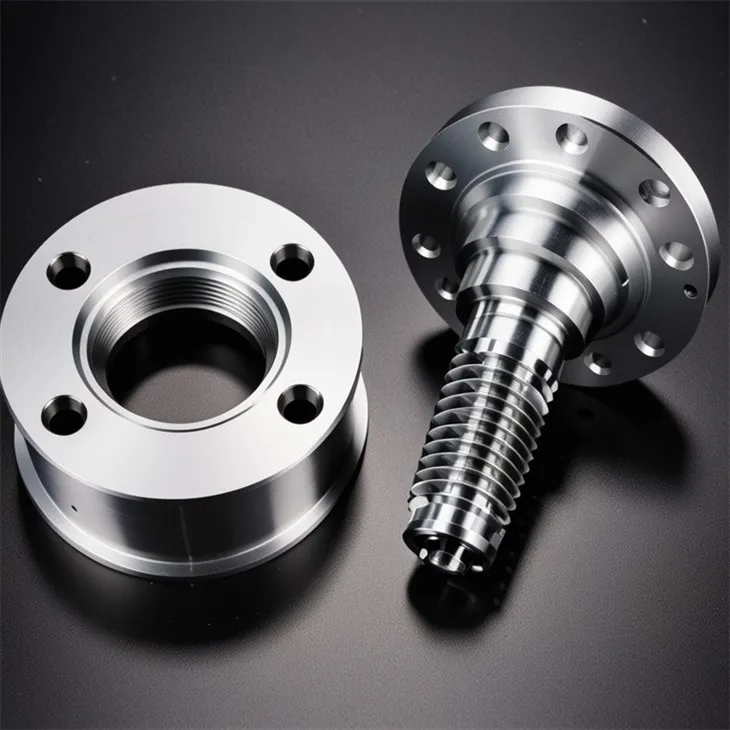

As a leading supplier of CNC Turning Parts, we have a range of CNC turning machines equipped with sub - spindles. Our machines are state - of - the - art and can handle a wide variety of materials, including metals, plastics, and composites.

Our team of experienced engineers and technicians are well - versed in operating these machines to achieve the highest level of precision and quality. We can offer customized CNC Turning Machining solutions to meet the specific needs of our customers. Whether you need a small batch of high - precision parts or a large - scale production run, we have the expertise and resources to deliver.

In addition to our machining capabilities, we also provide comprehensive CNC Turning Services. This includes design assistance, material selection, and quality control. We work closely with our customers from the initial design stage to the final production, ensuring that the end - product meets or exceeds their expectations.

5. Conclusion

The sub - spindle is an indispensable component in modern CNC turning machines. It offers numerous advantages, including increased productivity, improved precision, and cost - effectiveness. Its applications span across various industries, from automotive to electronics and medical.

As a reliable CNC turning supplier, we are committed to providing high - quality products and services. Our advanced machines equipped with sub - spindles, combined with our experienced team, enable us to meet the diverse needs of our customers. If you are in need of CNC turning parts or services, we invite you to contact us for a detailed discussion. We are ready to work with you to bring your ideas to life and provide the best solutions for your manufacturing requirements.
